More than a Media Server

The ultimate video solution tailored for the most challenging projects.

Modulo Kinetic is a high-end and fully-integrated media server with embedded live mixer which will be the cornerstone of your complete workflow.
Perform study, simulation, show creation, encoding, playback and control … all of it through one single box.
With its intuitive user interface and advanced innovative features, Modulo Kinetic offers unprecedented real-time 3D, interactivity, and tracking.

The Ultimate Video Solution Reliable Across The Complete Workflow

Working in close collaboration with show producers, creatives, and technicians around the world,
we created Modulo Kinetic to help you every step of the way.

From show design and simulation to show encoding and control,
Modulo Kinetic provides you with right tools to reduce complexity
and effortlessly create stunning visual experiences.

Workflow-Modulo-Kinetic

A fully-Integrated Platform

Modulo Kinetic brings together the most advanced tools within one consistent environment.

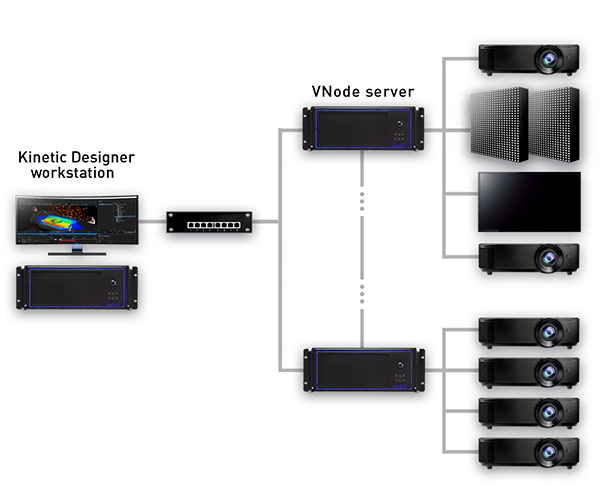

The platform relies on Kinetic Designer, a powerful user interface with a dedicated workstation, connected to one or several VNode media servers.

Kinetic Designer can be used offline for show study, simulation, and pre-encoding. When connected to the VNode media servers, Kinetic Designer will automatically distribute the media content to the VNode servers on the network.

Modulo-Kinetic-Synoptic-Rev
MKinetic_Media1

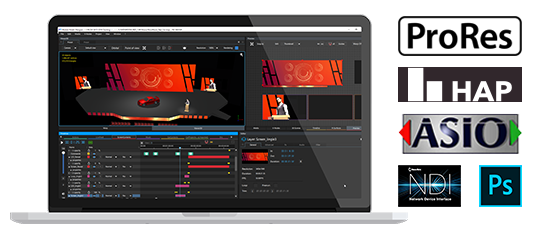

Smart User Interface & State-of-the-Art Media Processing

Kinetic Designer has been designed to make sure users focus on what’s important. Available offline and with multi-user capabilities, Kinetic Designer is the perfect tool for artists, designers, project managers and technicians.

Modulo Kinetic is built to process media seamlessly and provide the best image quality, while running on a streamlined hardware configuration. It handles a wide array of formats including Apple ProRes, HAP up to 8K+, uncompressed sequences including 10-bit DPX, as well as Interactive Shader Format (ISF).

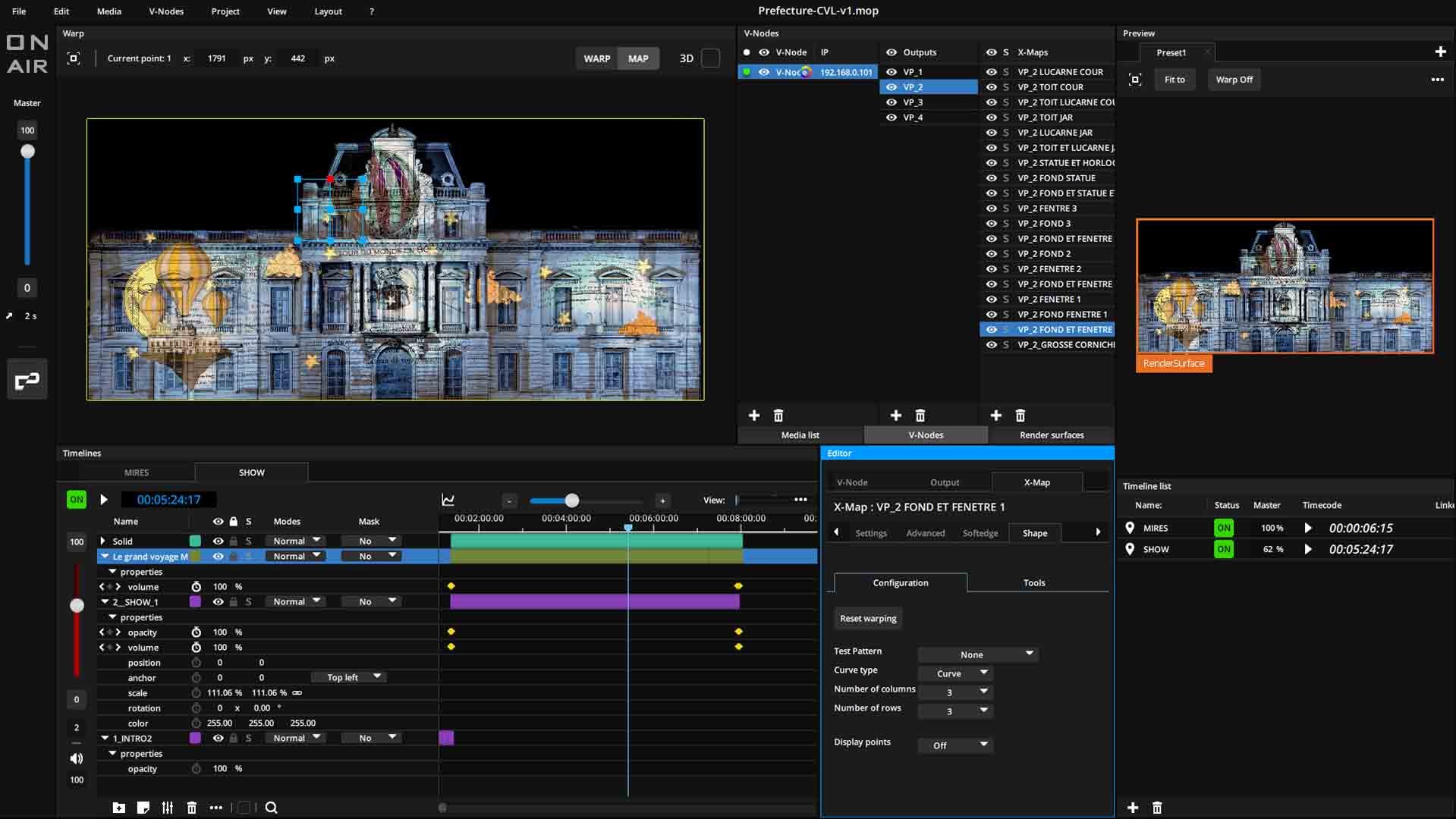

User-friendly 2D Real-time Composing Tool

Modulo Kinetic’s 2D compositing tool is easy and fast to learn.
A timeline sequencer allows to organize and animate your media, while the preview panel offers real-time visualization of your render surfaces and composited media. Create unlimited, non-linear, real-time timelines.
Drag & drop media, 3D scenes, add effects and keyframe animations.

Add control cue, trigger tasks, control devices directly to the timelines. Create as many Render Surfaces as needed. Those can be used to map a 3D object or to project content from a virtual projector in a 3D environment. Drag & drop cameras/projectors from the 3D scene in your timeline.

| INDUSTRY FIRST | Embedded Live Mixer

As a world’s first, Modulo Kinetic embeds a low-latency live mixer with all main functionalities of a mixer: Live program, preview, and confidence screens, presets management, transition effects…

Modulo Kinetic is a multi-user device: Several operators can work simultaneously on the media server and mixer interfaces. All contents and operations are perfectly synchronized.

Modulo Kinetic integrates live input cards, including FLEX video I/O technology by Deltacast. Find more information in Modulo Kinetic’s brochure.

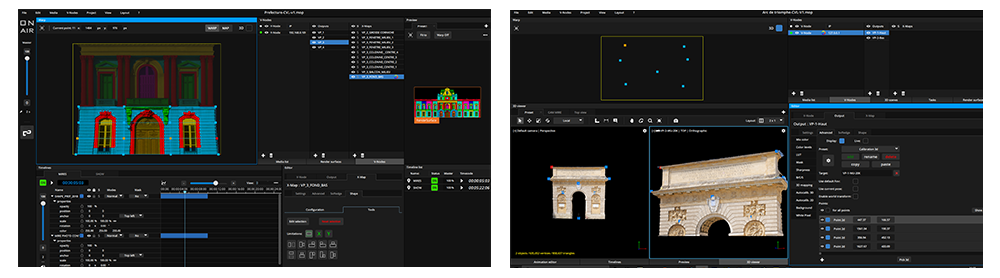

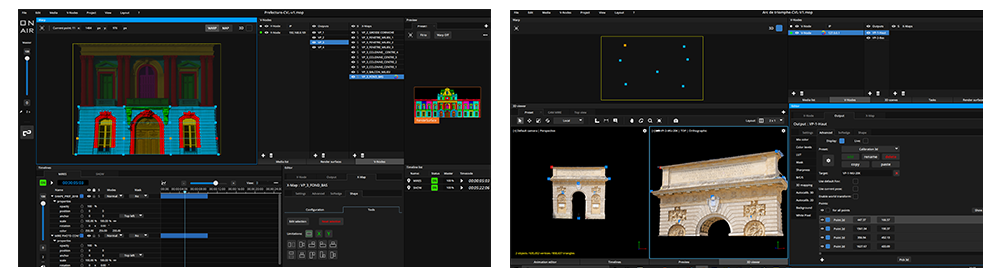

Unrivaled 2D & 3D Warping Tools

Warp your outputs with the keystone or curve features which come with many tools all embedded in Modulo Kinetic to make the process fast and easy.

Our exclusive X-Map function is the ideal tool to perform video mapping on the most elaborate shapes.
Simply import a Photoshop file, extract each of its layers, and warp them independently.

Auto calibrate your projectors in a 3D scene with 2D-3D connection points.
A multi-user warp remote, which can run on a simple laptop, is available for the 2D warping or 3D calibration process.

Several operators can work together simultaneously to speed up the calibration process.

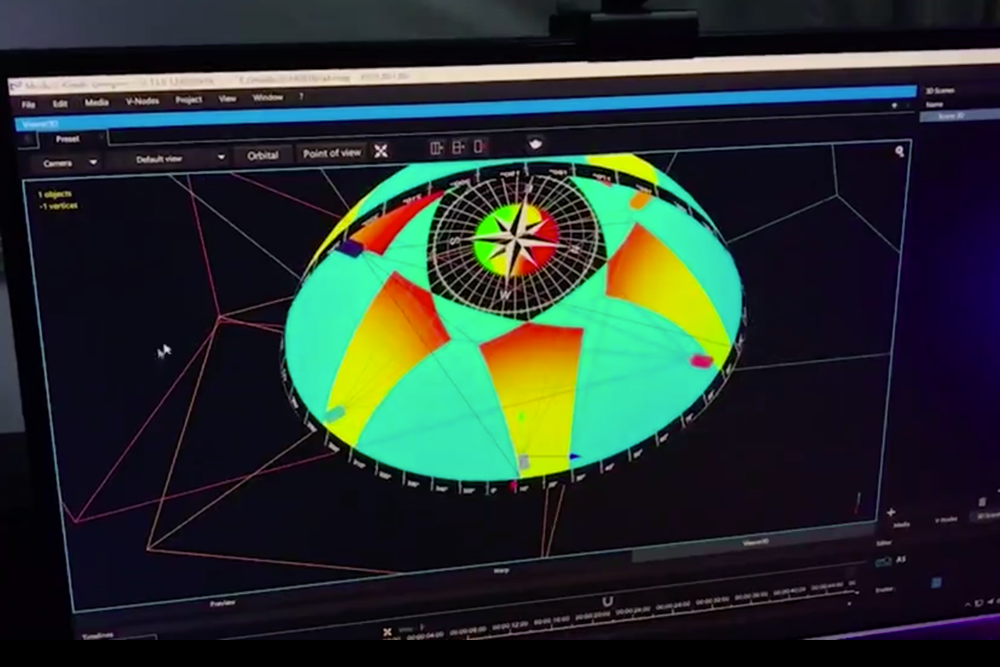

3D Engine for Show Study & Simulation

Our 3D workflow features a real-time 3D scene visualizer. There you can create unlimited number of scenes, add objects from our internal object library, and work with them (position, rotation, resize).
You can also import objects in a wide range of formats, or import complete scenes including lights, cameras, animations, or point cloud files from professional 3D scanners.

Use Modulo Kinetic to create your own animations. You can also import some existing animations, and modify them in the included animation editor.

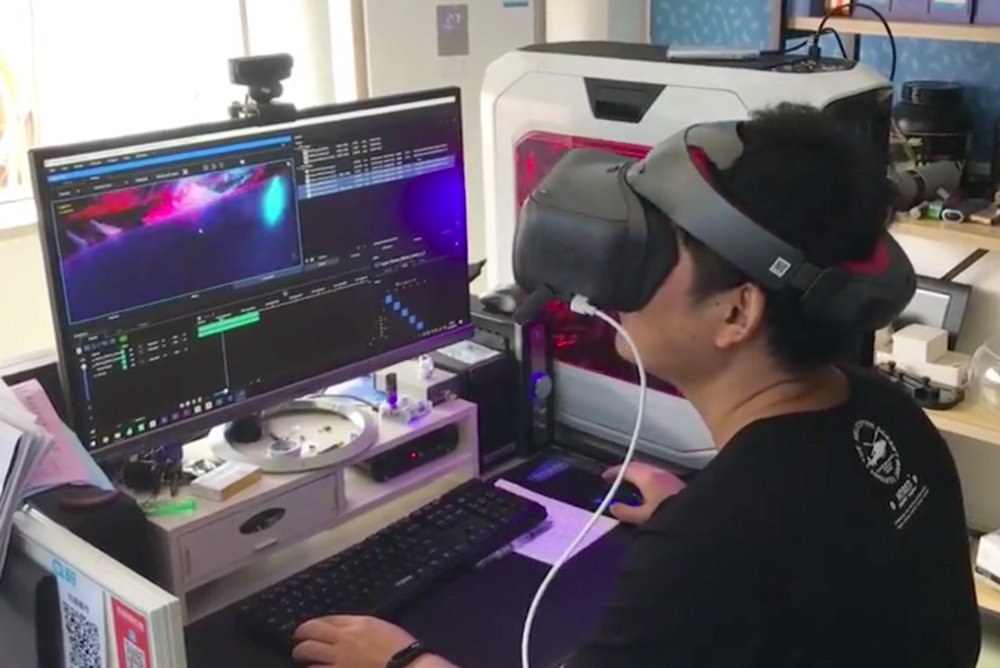

Interactive VR

Modulo Kinetic makes real-time VR easy for improved show study and simulation: one single button in the user interface allows to visualize a show scene from any angle with a VR headset.

No coding is needed to enjoy all the benefits of Modulo Kinetic’s real-time interactive VR.

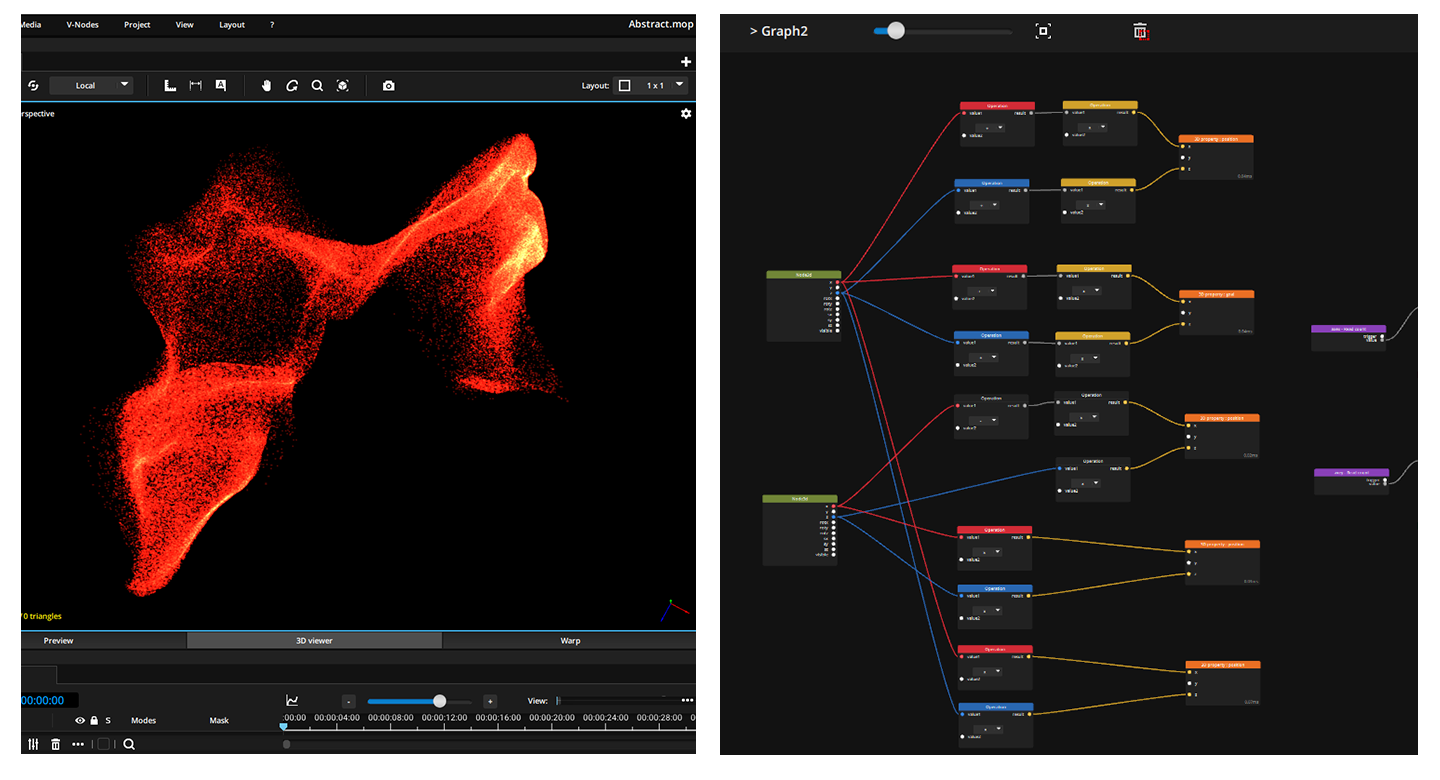

Generative & Interactive Content

A powerful 3D particles engine offers real-time generative and interactive content.
Particles can be created, modified, and animated directly in Modulo Kinetic’s user interface to produce spectacular effects.

The engine is perfectly integrated in Modulo Kinetic so that you can easily take full control of your elements using the nodal editor, keyframe animations, or timelines :

  • Interact with parameters of the 3D scene
  • Animate elements of the 3D scene using keyframes
  • Link the 2D and 3D contents in the timeline

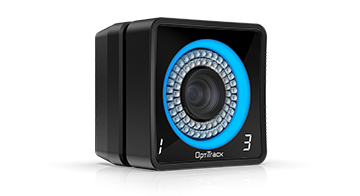

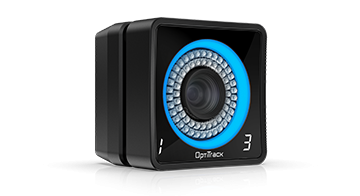

KineMotion: Tracking & Interactivity

To optimize performance and usability, Modulo Pi has developed KineMotion, its own tracking system.

KineMotion is an optical tracking module allowing real-time projection on moving objects, interaction with 3D scenes (including particles), and sending beacon position to light desk using the PosiStage protocol (PSN).

Watch our demo video to find out more about Modulo Kinetic’s advanced real-time tracking and interactive capabilities.


Show Control Capabilities

Create, control, and play automated tasks for a large number of preloaded external devices including video-projectors, matrix switchers, video processors. Trigger tasks from specific devices such as Calendar, MIDI, OSC, GPIO, DMX through Art-Net.

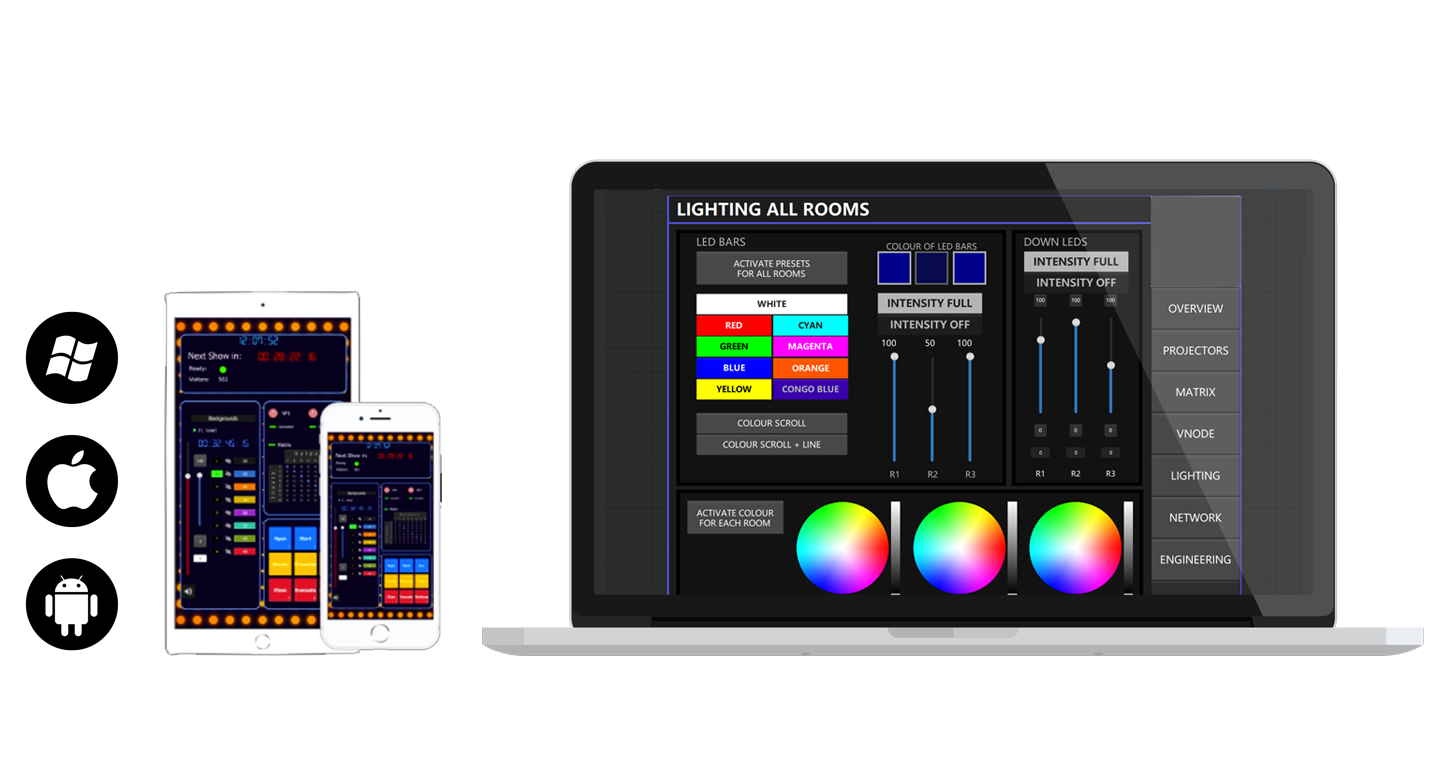

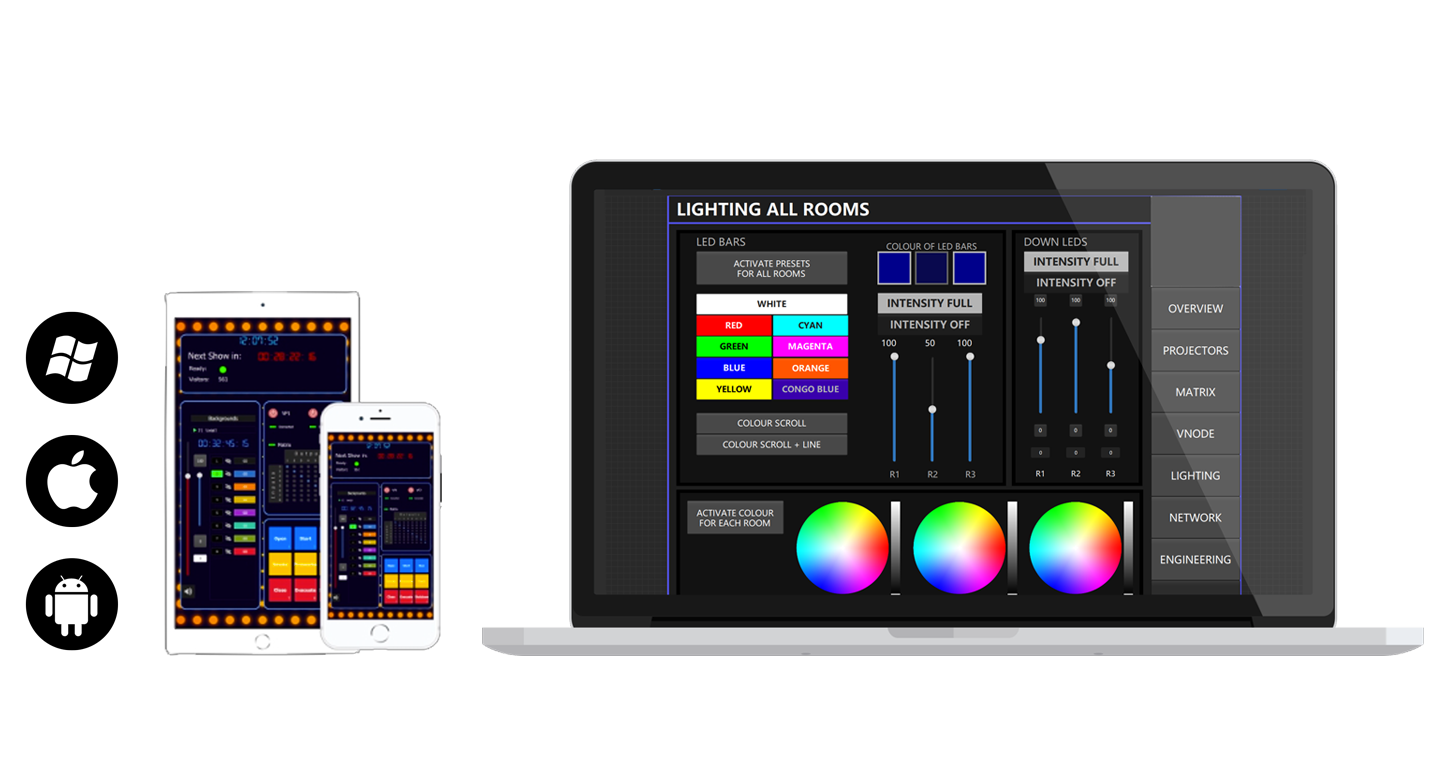

Easily create custom user panels working through Modulo Kinetic’s UI Designer: drag-and-drop tasks, add buttons, texts, images, web pages etc. Each custom user interface can be protected with a user login and password.

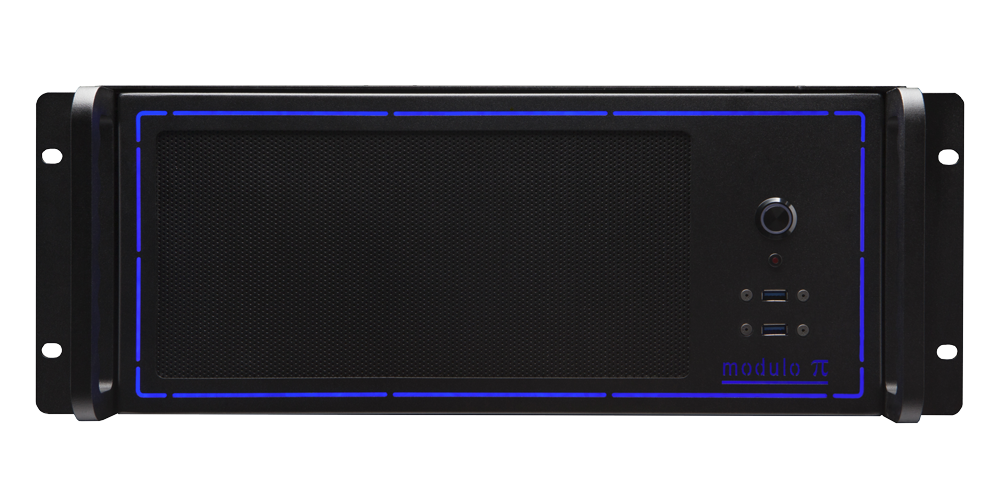

Regular or Rugged Suspended Chassis

Choose the enclosure best adapted to your needs: A regular or a ruggedized suspended chassis.

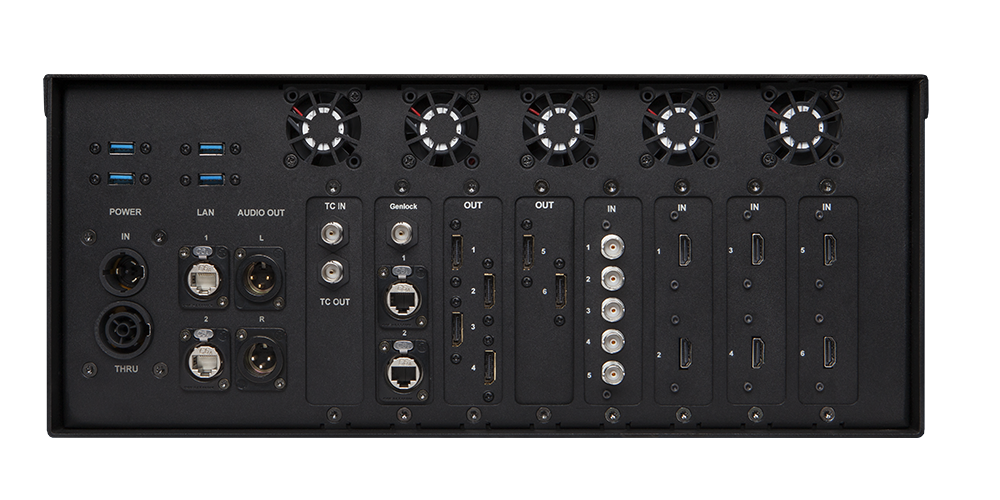

The rugged enclosure offers reinforced framework and professional connectivity
for optimal reliability and higher durability under all conditions.

produits-chassis1
Modulo-Pi-Rugged-Chassis-Rear

ReferencesOutputsSSDCapture card (option)
Kinetic Designer
KI-DESKinetic Designer250GB + Fast NVMe PCIE 2TB
Kinetic Designer - Ruggedized
RKI-DESKinetic Designer Ruggedized250GB + Fast NVMe PCIE 2TB
Kinetic V-NODE
KI-VNO-11 output 2560x1600250GB + Fast NVMe PCIE 2TB
KI-VNO-22 outputs 2560x1600250GB + Fast NVMe PCIE 2TB
KI-VNO-44 outputs 2560x1600 or 1 output 4K250GB + Fast NVMe PCIE 2TB
KI-VNO-66 outputs 2560x1600 or 1 output 4K 250GB + Fast NVMe PCIE 2TB
KI-VNO-2x4K6 outputs 2560x1600 or 2 outputs 4K250GB + Fast NVMe PCIE 4TB
KI-VNO-3x4K6 outputs 2560x1600 or 3 outputs 4K250GB + Fast NVMe PCIE 4TB
KI-VNO-4x4K6 outputs 2560x1600 or 4 outputs 4K250GB + Fast NVMe PCIE 4TB
Kinetic V-NODE - Ruggedized
RKI-VNO-11 output 2560x1600250GB + Fast NVMe PCIE 2TB
RKI-VNO-22 outputs 2560x1600250GB + Fast NVMe PCIE 2TB
RKI-VNO-44 outputs 2560x1600 or 1 output 4K250GB + Fast NVMe PCIE 2TB
RKI-VNO-66 outputs 2560x1600 or 1 output 4K250GB + Fast NVMe PCIE 2TB
RKI-VNO-2x4K6 outputs 2560x1600 or 2 outputs 4K250GB + Fast NVMe PCIE 4TB
RKI-VNO-3x4K6 outputs 2560x1600 or 3 outputs 4K250GB + Fast NVMe PCIE 4TB
RKI-VNO-4x4K6 outputs 2560x1600 or 4 outputs 4K250GB + Fast NVMe PCIE 4TB

References
KineMotion
KM-SOFTKineMotion add-on software for Modulo Kinetic Designer

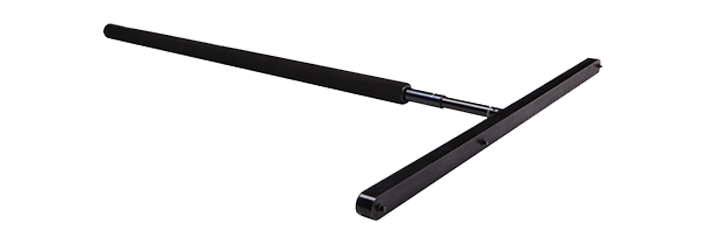

KM-CALIBTOOLKineMotion calibration toolset: A calibration wand, a calibration square, and a travel case

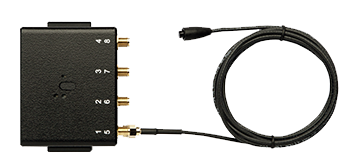

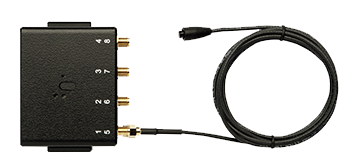

KM-BEACONKineMotion Beacon + 8 LEDS 1.8 meter cable with reflector
KM-SYNCActive synchro RF box

References
Boards and TC
DELTA-2x3GLive Capture 2 x 3G SDI
DELTA-1x12GLive Capture 4 x 3G SDI or 1 x 12G SDI + 2 x 3G SDI
DELTA-2x12GLive Capture 8 x 3G SDI or 2 x 12G SDI + 4 x 3G SDI
DELTA-4x12GLive Capture 8 x 3G SDI or 4 x 12G SDI
DELTA-2xHDMILive Capture 2 x 4K HDMI 2.0
DELTA-MIXEDLive Capture 4 x 3G SDI + 1 x HDMI 2.0 or 2 x 12G SDI + 1 x HDMI 2.0
DELTA-HOSTFlex Host Card
MOD-HDMIFlex module single HDMI 2.0
MOD-DPFlex module single DP 1.2
MOD-1x12GFlex module 4 x 3G SDI or 1 x 12G SDI
TC-PCIE-RTimecode reader card - PCIe
TC-PCIE-RWTimecode reader generator card - PCIe
TC-USB-RTimecode reader card - USB
Multi-projector auto-calibration solution
AUTOCAL-1-OUTMulti-projector auto-calibration module
AUTOCAL-LUCAMPoE camera with 1 x 15m cable (LUCID)
AUTOCAL-FILENSHigh resolution fish-eye lens (FUJINON)
AUTOCAL-8LENSHigh resolution 8 mm lens (FUJINON)
AUTOCAL-CASETravel case with custom inserts for 1 x PoE camera (LUCID), 15m cable, auto-calibration dongle, & up to 2 lenses (FUJINON)
Other
OUSTER-OS0-128Ouster 3D LiDAR with 128 channels
OUSTER-OSDOMEOuster 3D LiDAR ultra-wide 90° FOV
HOKUYO-10Hokuyo 2D LiDAR - 10 meters detection range
HOKUYO-20Hokuyo 2D LiDAR - 20 meters detection range
