More than a Media Player
A cost-effective media server ideal for your everyday projects.
Easy to learn, set-up, and operate, Modulo Player combines the extensive capabilities of a media server, and a live mixer.
Seamlessly process media, encode, and play your show through its super intuitive user interface.

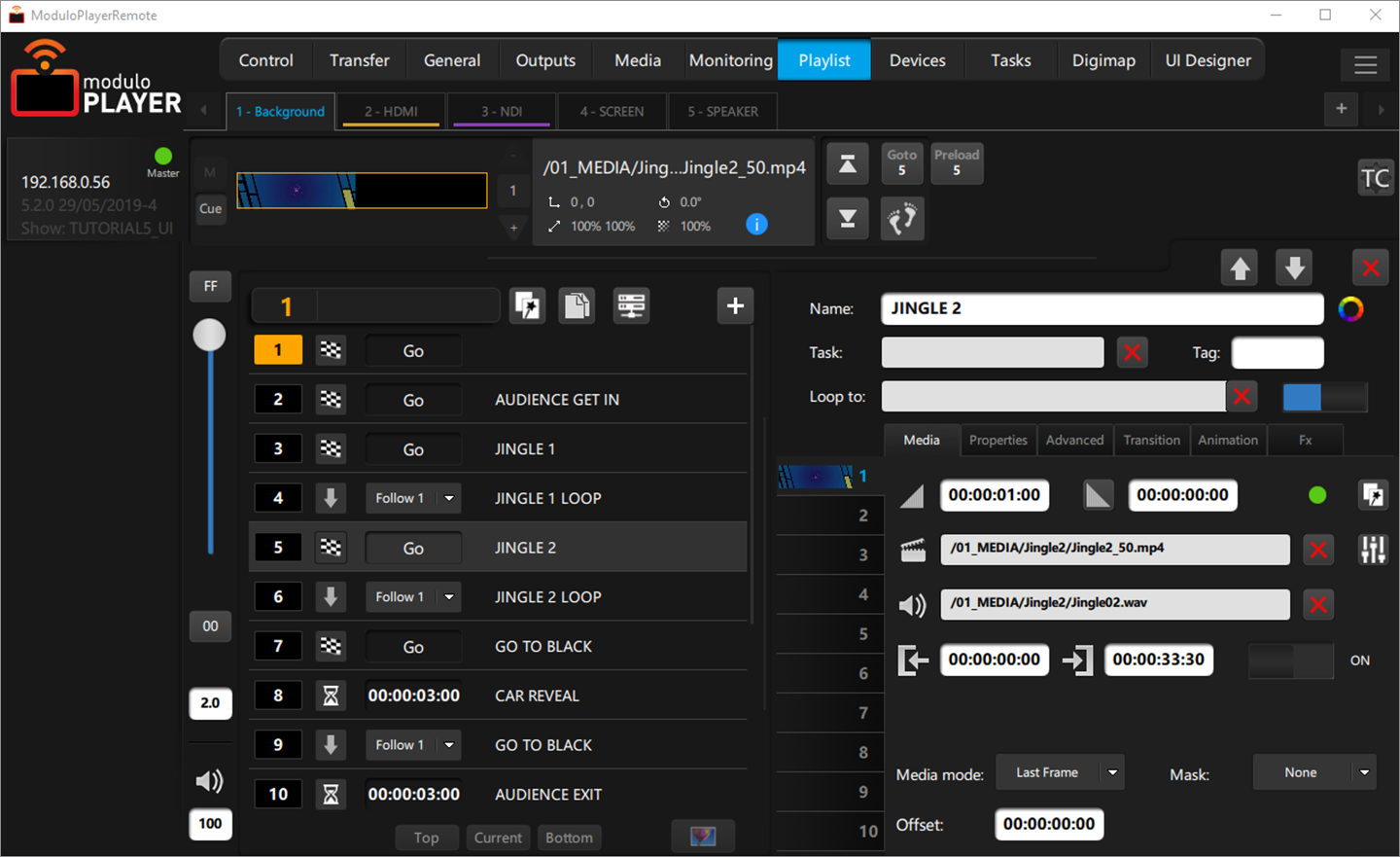

Simple-to-use workflow and playlist enable fast show set-up,
and last-minute changes.

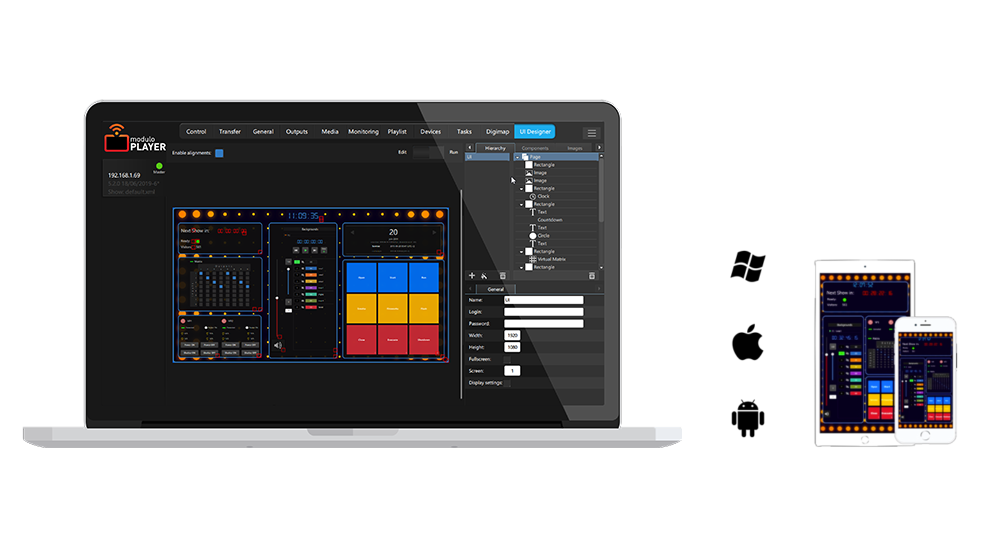

Super Intuitive Software
Modulo Player comes with a dedicated Remote Control Software designed to optimize setup, workflow management, and show control.
No matter the number of media servers, one remote control software is needed to work on the server(s) settings, as well as the overall setup, media encoding, transferring and show playback.
State-of-the-Art Media Processing
Modulo Player is designed to process media seamlessly and provide the best image quality, while running on a streamlined hardware configuration.
It handles a wide variety of media:
- Apple ProRes
- HAP up to 8K+
- H.264 and MPEG2
- Uncompressed still sequences including TGA & 10-bit DPX
- GoPro Cineform
- Interactive Shader Format (ISF)
- Multi-channel ASIO audio
- 3D 120Hz stereo (option)

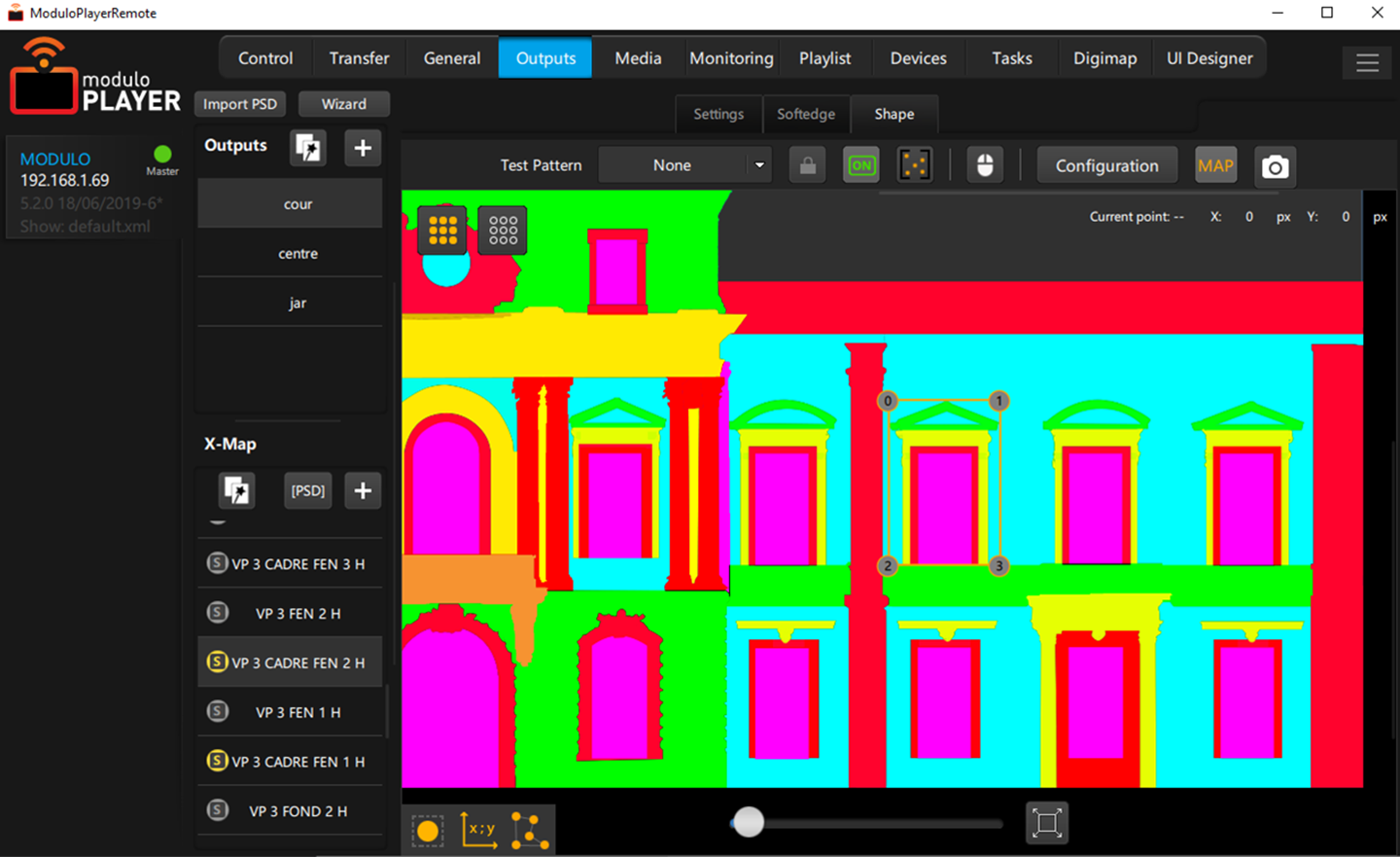

Powerful Warping Tools for Projection Mapping
Create stunning projection mapping experiences with unrivaled ease-of-use.
For the most complex shapes, our exclusive X-Map function will help you save time and money.
No need for an expensive 3D workflow: Simply import a Photoshop file, extract its layers, and warp them independently.

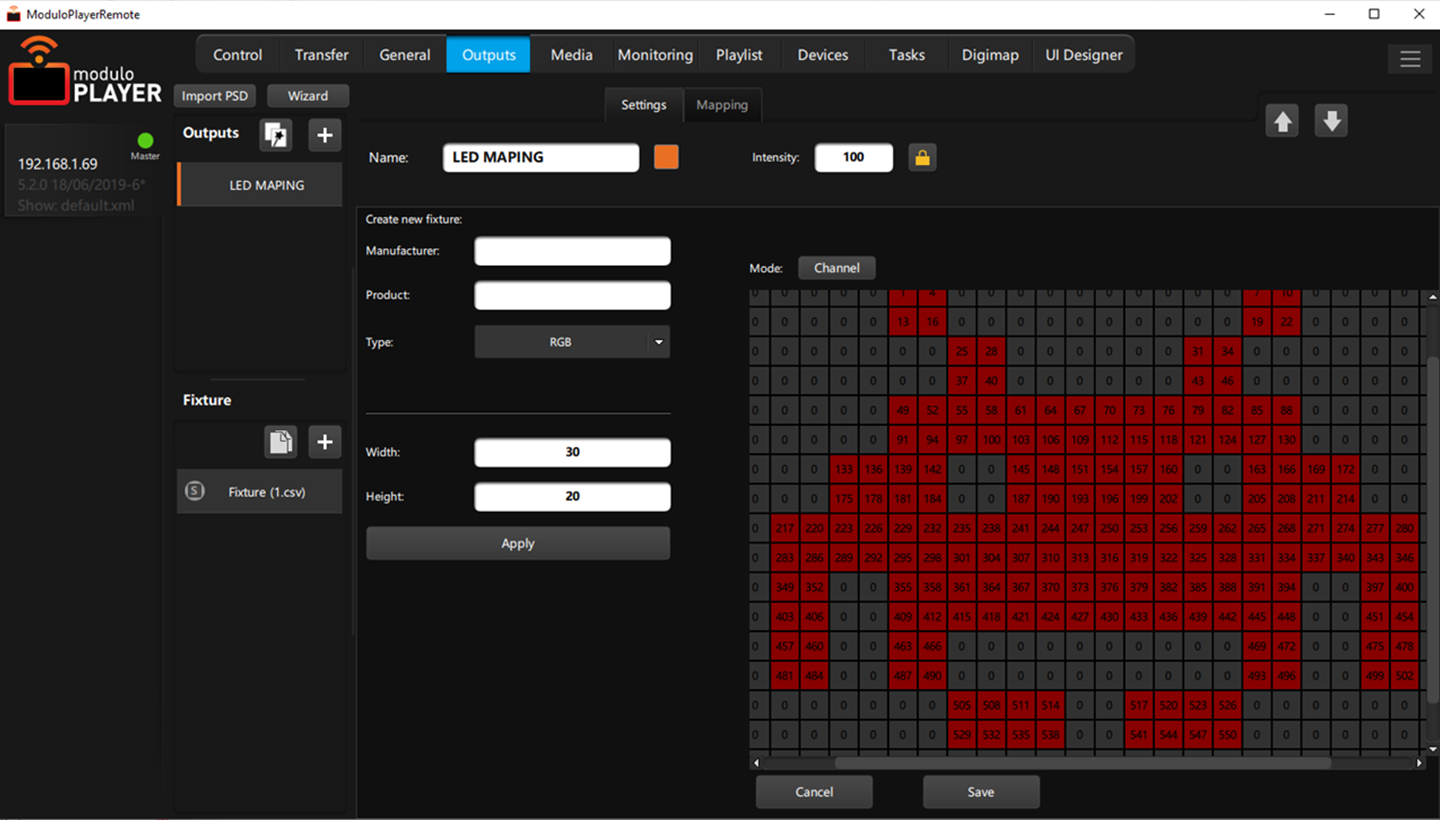

DMX & Art-Net Compatibility
Easily playback video content as DMX to control LED strip and lighting fixtures.
Modulo Player offers a video to Art-Net converter which uses the GPU to deliver pixel accurate DMX over Ethernet in real time.
| INDUSTRY FIRST | Embedded Live Mixer
As a world’s first, Modulo Player embeds a low-latency live mixer with all main functionalities of a mixer: Live program, preview, and confidence screens, presets management, transition effects…
Modulo Player is a multi-user device: Several operators can work simultaneously on the media server and mixer interfaces. All contents and operations are perfectly synchronized.

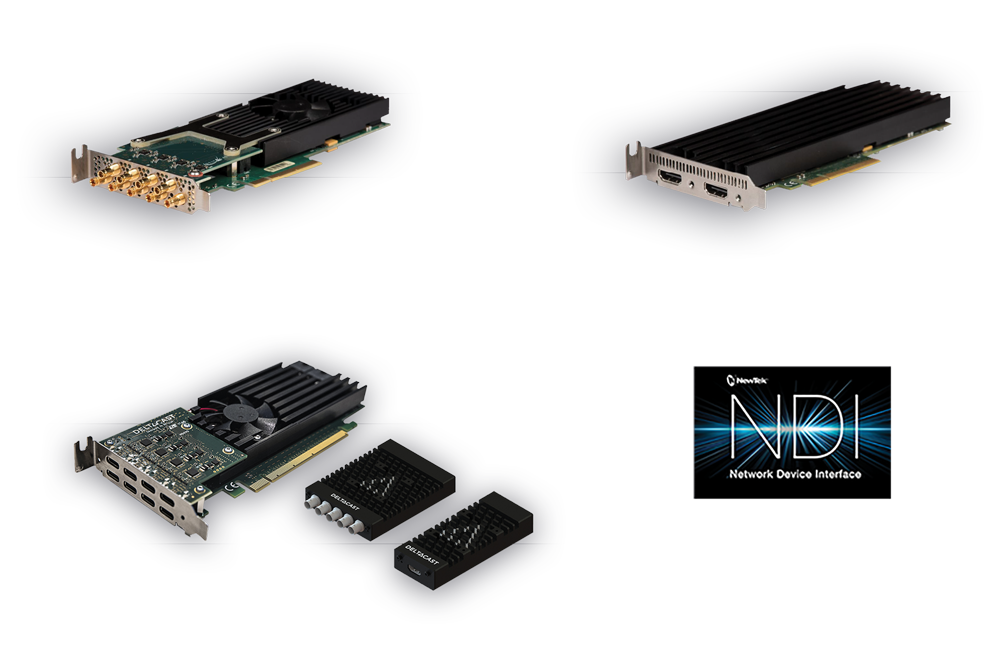

Live Input Boards
Modulo Player integrates live input cards, including FLEX video I/O technology by Deltacast:
- Up to 8 x SD/HD/3G-SDI inputs
- Up to 4 x HDMI 2.0 inputs
It supports NewTek’s NDI technology, and allows to stream multiple high quality live video sources across an Ethernet network, and use them as inputs.
Visualize all your live sources on your custom designed monitoring output and/or stream them over NDI.
Ready for Interactivity
Add interactivity and simple tracking to your shows thanks to Modulo Player’s Digimap function.
Easily control the parameters of your media – including position, rotation, opacity, color,… – using external devices (OSC, Art-Net, MIDI, TCP/IP rotary encoder).
Modulo Player’s wizard allows easy and quick calibration of the incoming data, so that you can link it to your media parameters.
Watch the video and see an example of panels tracked thanks to our Digimap feature.

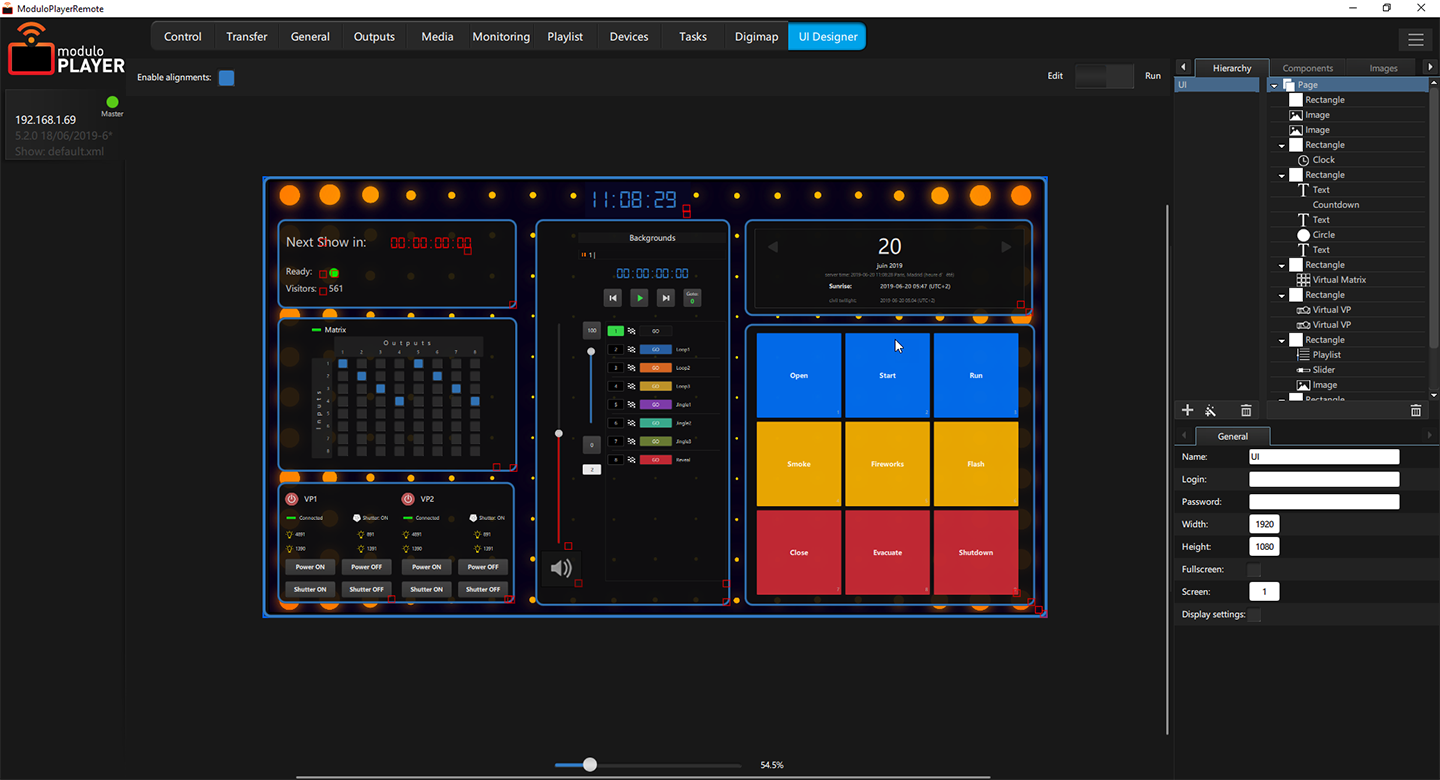

Easy, yet Powerful Show Control
Create, control, and play automated tasks for a wide number of preloaded external devices including video-projectors, matrix switchers, video processors. The device main parameters are available in our extensive library to ensure fast and easy control through Modulo Player.
Trigger tasks from specific devices such as Calendar, MIDI, OSC, GPIO, Art-Net and DMX.
Several Customizable Hardware Configurations
Modulo Player is available in 4 different hardware configurations to fit your needs and budget: Nano, Standard, Pro, and Ultra.
The different hardware configurations can all be customized: Add a timecode card, a live capture card, additional storage capacity, etc.
Check the Specifications tab or download Modulo Player’s brochure to find out more.

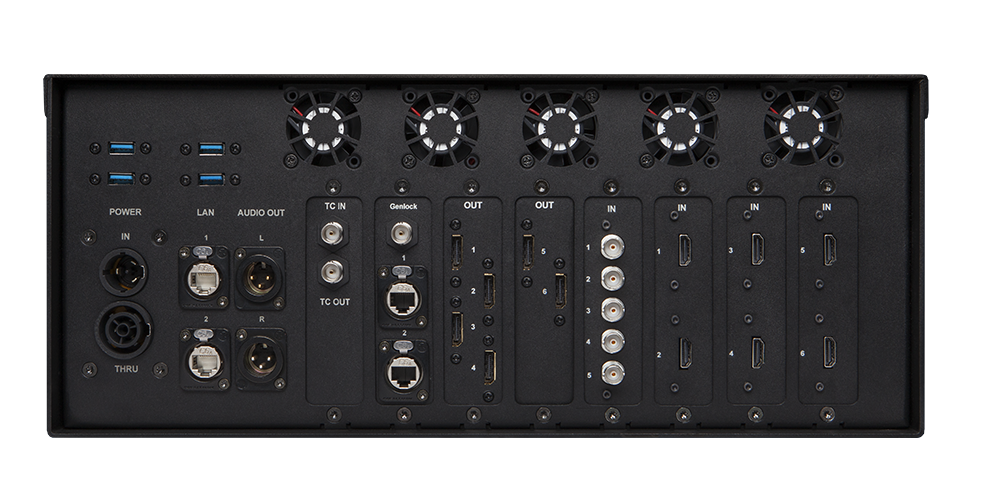

| NEW | Rugged Suspended Chassis
A new ruggedized suspended chassis is now available as an option.
Its reinforced framework and professional connectivity ensures optimal reliability
and higher durability under all conditions.
| References | Outputs | SSD | Capture card (option) |
|---|---|---|---|
| Modulo Player NANO | |||
| NANO-1 | 1 output 2560x1600 | 100GB + 400GB SSD | |
| Modulo Player STANDARD | |||
| MP-STD-1 | 1 output 2560x1600 | 250GB + 500GB SSD | |
| MP-STD-2 | 2 outputs 2560x1600 | 250GB + 500GB SSD | |
| MP-STD-3 | 3 outputs 2560x1600 | 250GB + 500GB SSD | |
| MP-STD-4 | 4 outputs 2560x1600 | 250GB + 500GB SSD | |
| Modulo Player PRO | |||
| MP-PRO-1 | 1 output 2560x1600 | 250GB + Fast NVMe PCIE 2TB |  |
| MP-PRO-2 | 2 outputs 2560x1600 | 250GB + Fast NVMe PCIE 2TB | |
| MP-PRO-4 | 4 outputs 2560x1600 or 1 output 4K | 250GB + Fast NVMe PCIE 2TB | |
| MP-PRO-6 | 6 outputs 2560x1600 or 1 output 4K | 250GB + Fast NVMe PCIE 2TB | |
| MP-PRO-2x4K | 6 outputs 2560x1600 or 2 outputs 4K | 250GB + Fast NVMe PCIE 4TB | |
| MP-PRO-3x4K | 6 outputs 2560x1600 or 3 outputs 4K | 250GB + Fast NVMe PCIE 4TB | |
| MP-PRO-4x4K | 6 outputs 2560x1600 or 4 outputs 4K | 250GB + Fast NVMe PCIE 4TB | |
| Modulo Player PRO - Ruggedized | |||
| RMP-PRO-1 | 1 output 2560x1600 | 250GB + Fast NVMe PCIE 2TB | |
| RMP-PRO-2 | 2 outputs 2560x1600 | 250GB + Fast NVMe PCIE 2TB | |
| RMP-PRO-4 | 4 outputs 2560x1600 or 1 output 4K | 250GB + Fast NVMe PCIE 2TB | |
| RMP-PRO-6 | 6 outputs 2560x1600 or 1 output 4K | 250GB + Fast NVMe PCIE 2TB | |
| RMP-PRO-2x4K | 6 outputs 2560x1600 or 2 outputs 4K | 250GB + Fast NVMe PCIE 4TB | |
| RMP-PRO-3x4K | 6 outputs 2560x1600 or 3 outputs 4K | 250GB + Fast NVMe PCIE 4TB | |
| RMP-PRO-4x4K | 6 outputs 2560x1600 or 4 outputs 4K | 250GB + Fast NVMe PCIE 4TB | |
| Modulo Player ULTRA | |||
| MP-UX-1 | 1 output 2560x1600 | 250GB + Fast NVMe PCIE 2TB | |
| MP-UX-2 | 2 outputs 2560x1600 | 250GB + Fast NVMe PCIE 2TB | |
| MP-UX-4 | 4 outputs 2560x1600 or 1 output 4K | 250GB + Fast NVMe PCIE 4TB | |
| MP-UX-2x4K | 6 outputs 2560x1600 or 2 outputs 4K | 250GB + Fast NVMe PCIE 8TB | |
| MP-UX-3x4K | 6 outputs 2560x1600 or 3 outputs 4K | 250GB + Fast NVMe PCIE 8TB | |
| Modulo Player ULTRA - Ruggedized | |||
| RMP-UX-1 | 1 output 2560x1600 | 250GB + Fast NVMe PCIE 2TB | |
| RMP-UX-2 | 2 outputs 2560x1600 | 250GB + Fast NVMe PCIE 2TB | |
| RMP-UX-4 | 4 outputs 2560x1600 or 1 output 4K | 250GB + Fast NVMe PCIE 4TB | |
| RMP-UX-2x4K | 6 outputs 2560x1600 or 2 outputs 4K | 250GB + Fast NVMe PCIE 8TB | |
| RMP-UX-3x4K | 6 outputs 2560x1600 or 3 outputs 4K | 250GB + Fast NVMe PCIE 8TB | |
| References | |
|---|---|
| Boards and TC | |
| DELTA-2x3G | Live Capture 2 x 3G SDI |
| DELTA-1x12G | Live Capture 4 x 3G SDI or 1 x 12G SDI + 2 x 3G SDI |
| DELTA-2x12G | Live Capture 8 x 3G SDI or 2 x 12G SDI + 4 x 3G SDI |
| DELTA-4x12G | Live Capture 8 x 3G SDI or 4 x 12G SDI |
| DELTA-2xHDMI | Live Capture 2 x 4K HDMI 2.0 |
| DELTA-MIXED | Live Capture 4 x 3G SDI + 1 x HDMI 2.0 or 2 x 12G SDI + 1 x HDMI 2.0 |
| DELTA-HOST | Flex Host Card |
| MOD-HDMI | Flex module single HDMI 2.0 |
| MOD-DP | Flex module single DP 1.2 |
| MOD-1x12G | Flex module 4 x 3G SDI or 1 x 12G SDI |
| TC-PCIE-R | Timecode reader card - PCIe |
| TC-PCIE-RW | Timecode reader generator card - PCIe |
| TC-USB-R | Timecode reader card - USB |
| Multi-projector auto-calibration solution | |
| AUTOCAL-1-OUT | Multi-projector auto-calibration module |
| AUTOCAL-LUCAM | PoE camera with 1 x 15m cable (LUCID) |
| AUTOCAL-FILENS | High resolution fish-eye lens (FUJINON) |
| AUTOCAL-8LENS | High resolution 8 mm lens (FUJINON) |
| AUTOCAL-CASE | Travel case with custom inserts for 1 x PoE camera (LUCID), 15m cable, auto-calibration dongle, & up to 2 lenses (FUJINON) |
Online user manual:
Product literature:
Technical datasheets:
- Modulo Player Nano – HWR2022-1
- Modulo Player Standard – HWR2022-1
- Modulo Player Pro – HWR2022-1
- Modulo Player Pro Ruggedized – HWR2022-1
- Modulo Player Ultra – HWR2022-1
- Modulo Player Ultra Ruggedized – HWR2022-1
- Embedded low-latency Live Mixer
- Multi-projector Auto-Calibration module
For older hardware versions, please contact us.
Application notes:
- Soft Edge Blending configuration featuring Live Mixer, Show Control, Speaker panel
- Soft Edge Blending and Projection Mapping configuration featuring LED Mapping, Live Mixer, Show Control, Speaker panel
- Architectural mapping in multi-server configuration
- Creative LED display configuration up to 8K
- Multi-projector Auto-Calibration in dome configuration
- Projection on moving screen with Digimap function
Related software and tools:
- Multi-projector Auto-Calibration module: Multi-projector auto-calibration module for planar, curved, and dome surfaces
- Modulo Player Lite: License for offline programming (requires Modulo Pi key)
- Modulo Panel: Companion app to host and use your custom user panels on Mac, PC, Android or iOS devices
- Modulo Shortcut: Companion app to take control of your Keynote or PowerPoint presentations
- Modulo Sync: Companion app to automatically transfer media to several Modulo Player servers
- Modulo Wing: Companion app to access all your playlists and tasks on PC, Mac, Android or iOS devices
